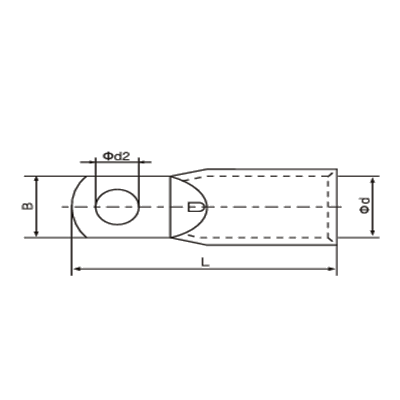

型号 | 导线截 | 尺寸Dimension(mm) | 包装数 pcs/pack | |||
| φd2 | B | L | φd | |||
| TM 10-5 | A.W.G 8-10mm² | 5.3 | 9 | 27 | 4.4 | 500 |
| TM 16-5 | A.W.G 6-16mm² | 5.3 | 9 | 31 | 5.7 | 250 |
| TM 25-5 | A.W.G 25mm² | 5.3 | 9 | 35 | 7.1 | 250 |
| TM 25-6 | 6.5 | 11 | 36 | 7.1 | 250 | |
| TM 35-6 | A.W.G 35mm² | 6.4 | 11.5 | 40.5 | 8.5 | 200 |
| TM 35-8 | 8.4 | 12.8 | 42.5 | 8.5 | 200 | |
| TM 50-6 | A.W.G 50mm² | 6.4 | 12.8 | 45.5 | 9.6 | 100 |
| TM 50-8 | 8.4 | 12.8 | 45.5 | 9.6 | 100 | |
| TM 50-10 | 10.5 | 15.5 | 47.5 | 9.6 | 100 | |
| TM 70-6 | A.W.G 70mm² | 6.4 | 12.8 | 49 | 11.3 | 100 |
| TM 70-8 | 8.4 | 12.8 | 49 | 11.3 | 100 | |
| TM 70-10 | 10.5 | 15.5 | 51 | 11.3 | 100 | |
| TM 95-8 | A.W.G 895mm² | 8.4 | 15.5 | 54 | 13.6 | 50 |
| TM 95-10 | 10.5 | 15.5 | 56 | 13.6 | 50 | |
| TM 120-8 | A.W.G 4/0-120mm² | 8.4 | 19 | 68 | 15.7 | 30 |
| TM 120-10 | 10.5 | 19 | 68 | 15.7 | 30 | |
| TM 150-8 | A.W.G 250/300MCM-150mm² | 8.4 | 19 | 75 | 16.8 | 10 |
| TM 150-10 | 10.5 | 19 | 75 | 16.8 | 10 | |
| TM 185-10 | A.W.G 300/350MCM-185mm² | 10.5 | 24.5 | 79 | 19.1 | 10 |
| TM 240-10 | A.W.G 400MCM-240mm² | 10.5 | 29.8 | 86 | 21.2 | 10 |
| TM 240-12 | 13.2 | 29.8 | 95 | 21.2 | 10 | |
| TM 240-16 | 17 | 29.8 | 100 | 21.2 | 10 | |
| TM 300-12 | A.W.G 500MCM-300mm² | 13.2 | 31 | 97 | 23.8 | 5 |
