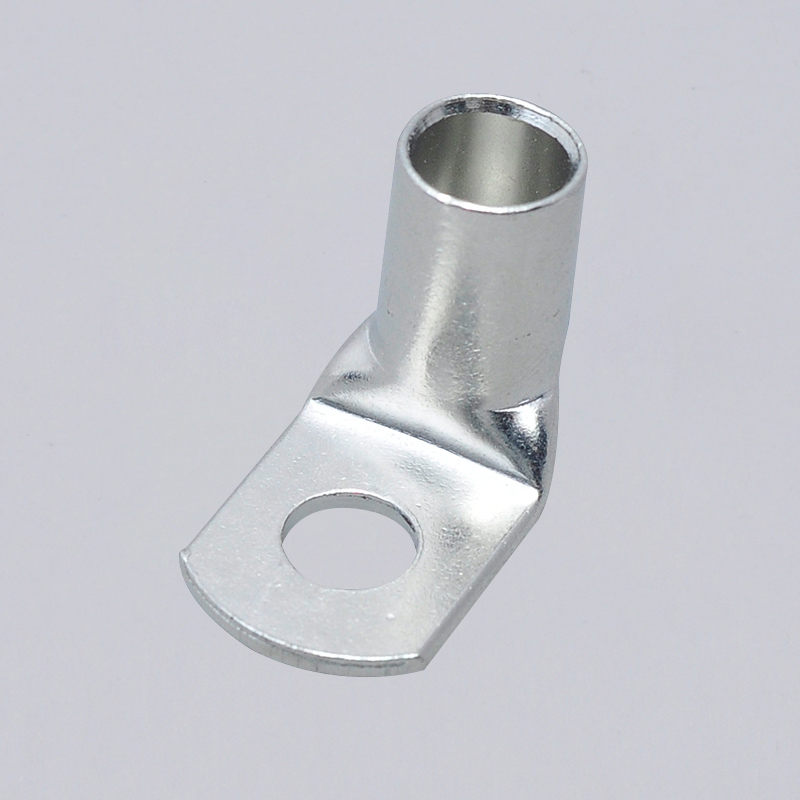

SC铜管端头
90度
详细规格 产品咨询
详细规格
产品

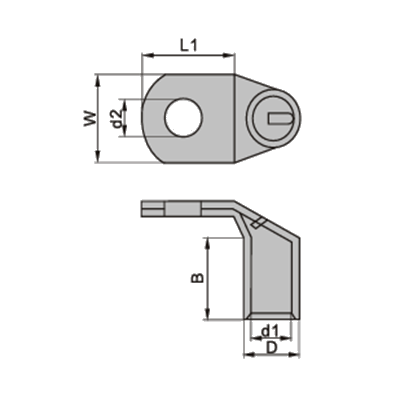

尺寸
关闭
型号       ITEM NO.尺寸Dimension(mm)
φDφdWL1Nt1tφd2
SC10-5-90D6.54.910.410.212.71.40.85.3
SC10-6-90D6.4
SC10-8-90D11.21.38.4
SC10-10-90D13.916.5110.4
SC16-6-90D86111315216.4
SC16-8-90D11.88.4
SC16-10-90D14.512.416.51.610.5
SC16-12-90D18.51320112.4
SC25-6-90D971313.717216.3
SC25-8-90D8.3
SC25-10-90D151.710.4
SC25-12-90D17.91322.51.41.212.4
SC25-14-90D191.214.4
SC35-6-90D10.58.315.215192.21.16.4
SC35-8-90D8.4
SC35-10-90D10.4
SC35-12-90D1714.7212.4
SC50-6-90D12.59.918.316.622.82.61.36.4
SC50-8-90D8.4
SC50-10-90D10.4
SC50-12-90D12.4
SC70-6-90D14.511.921.218.6252.61.36.4
SC70-8-90D8.4
SC70-10-90D10.4
SC70-12-90D12.4
SC70-14-90D1512222231.514.4
SC95-8-90D1713.624.826.526.53.41.78.4
SC95-10-90D10.4
SC95-12-90D12.4
SC95-14-90D15
SC95-16-90D17
