浙江南州科技有限公司

导线截面 Cable Size	型号 ITEM NO.	尺寸Dimension(mm)						压接工具Crimping Tool	包装数 pcs/pack

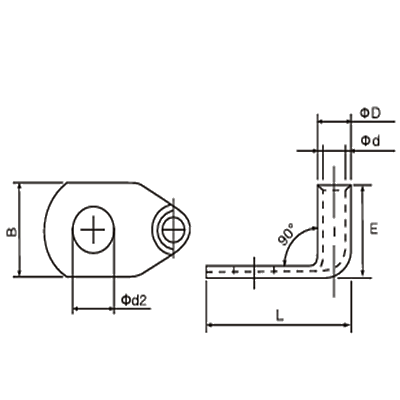

导线截面 Cable Size	型号 ITEM NO.	φd2	B	L	φD	φd	E	压接工具Crimping Tool	包装数 pcs/pack
A.W.G.10 6mm²	GPH-6/5	5.3	10	22.5	6.5	3.5	14	IZUMI 5N18	500
	GPH-6/6	6.4	12	24	6.5	3.5	14		500
	GPH-6/8	8.5	15	27.5	6.5	3.5	14		100
	GPH-6/10	10.5	16	29.5	6.5	3.5	14		100
A.W.G.8 10mm²	GPH-10/5	5.3	12	23	7	4.6	16	IZUMI 5N18	500
	GPH-10/6	6.4	12	24	7	4.6	16		500
	GPH-10/8	8.5	15	28	7	4.6	16		100
	GPH-10/10	10.5	17	29.5	7	4.6	16		100
A.W.G.6 16mm²	GPH-16/5	5.3	12	22.5	8.5	5.5	20	OPT TP-150D	100
	GPH-16/6	6.4	14	24	8.5	5.5	20		100
	GPH-16/8	8.5	15	28	8.5	5.5	20		100
	GPH-16/10	10.5	17	31	8.5	5.5	20		100
	GPH-16/12	13	18	32	8.5	5.5	20		100
A.W.G.4 25mm²	GPH-25/6	6.4	15	27.5	10	7	21	OPT TP-150D	100
	GPH-25/8	8.5	16	32.5	10	7	21		100
	GPH-25/10	10.5	18	32.5	10	7	21		100
	GPH-25/12	13	19	34	10	7	21		100
A.W.G.2 35mm²	GPH-35/6	6.4	17	28.5	12	8.5	24	OPT TP-150D	100
	GPH-35/8	8.5	17	34	12	8.5	24		100
	GPH-35/10	10.5	20	34	12	8.5	24		100
	GPH-35/12	13	22	40.5	12	8.5	24		100
A.W.G.1/0 50mm²	GPH-50/6	6.4	20	37	14	10	28.5	OPT TP-150D	50
	GPH-50/8	8.5	20	40.5	14	10	28.5		50
	GPH-50/10	10.5	20	40.5	14	10	28.5		50
	GPH-50/12	13	23	42.5	14	10	28.5		50
	GPH-50/16	17	28	50.5	14	10	28.5		50
A.W.G.2/0 70mm²	GPH-70/8	8.5	23.5	43	16.5	12	31	OPT TP-150D	50
	GPH-70/10	10.5	23.5	43	16.5	12	31		50
	GPH-70/12	13	23.5	44.5	16.5	12	31		50
	GPH-70/16	17	28	53	16.5	12	31		50
	GPH-70/20	21	30	59	16.5	12	31		50
A.W.G.3/0 95mm²	GPH-95/8	8.5	25.7	44.5	18	13.5	35	OPT TP-150D	50
	GPH-95/10	10.5	25.7	44.5	18	13.5	35		50
	GPH-95/12	13	25.7	46.5	18	13.5	35		50
	GPH-95/16	17	28	52	18	13.5	35		50
	GPH-95/20	21	30.5	59	18	13.5	35		50
A.W.G.4/0 120mm²	GPH-120/10	10.5	28	49	19.5	15	35.5	IZUMI EP-520C	30
	GPH-120/12	13	28	49	19.5	15	35.5		30
	GPH-120/16	17	28	55	19.5	15	35.5		30
	GPH-120/20	21	30.5	61	19.5	15	35.5		30
A.W.G.250/300MCM 1500mm²	GPH-150/8	8.5	30.4	48	21	16.5	40	IZUMI EP-520C	20
	GPH-150/10	10.5	30.4	48	21	16.5	40		20
	GPH-150/12	13	30.4	51	21	16.5	40		20
	GPH-150/16	17	30.4	56	21	16.5	40		20
	GPH-150/20	21	34	61.5	21	16.5	40		20
A.W.G.300/350MCM 185mm²	GPH-185/12	13	34.7	58.5	24	19	46	IZUMI EP-520C	10
	GPH-185/16	17	34.7	58.5	24	19	46		10
	GPH-185/20	21	34.7	65	24	19	46		10
A.W.G.400MCM 240mm²	GPH-240/12	13	37.8	60	26	21	50	IZUMI EP-520C	10
	GPH-240/16	17	37.8	60	26	21	50		10
	GPH-240/20	21	37.8	68	26	21	50		10
A.W.G.500MCM 300mm²	GPH-300/12	13	42.7	64	29.5	23.5	59	IZUMI EP-1000A	8
	GPH-300/16	17	42.7	64	29.5	23.5	59		8
	GPH-300/20	21	42.7	70.5	29.5	23.5	59		8
A.W.G.600/750MCM 400mm²	GPH-400/12	13	49	68.5	34	27	62	IZUMI EP-1000A	8
	GPH-400/16	17	49	68.5	34	27	62		8
	GPH-400/20	21	49	75	34	27	62		8
